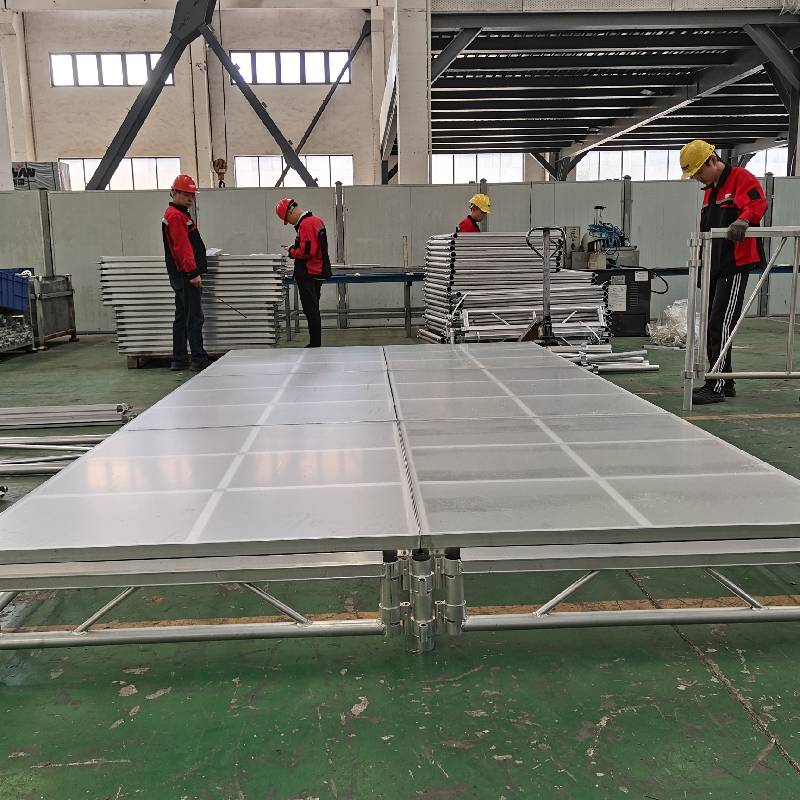

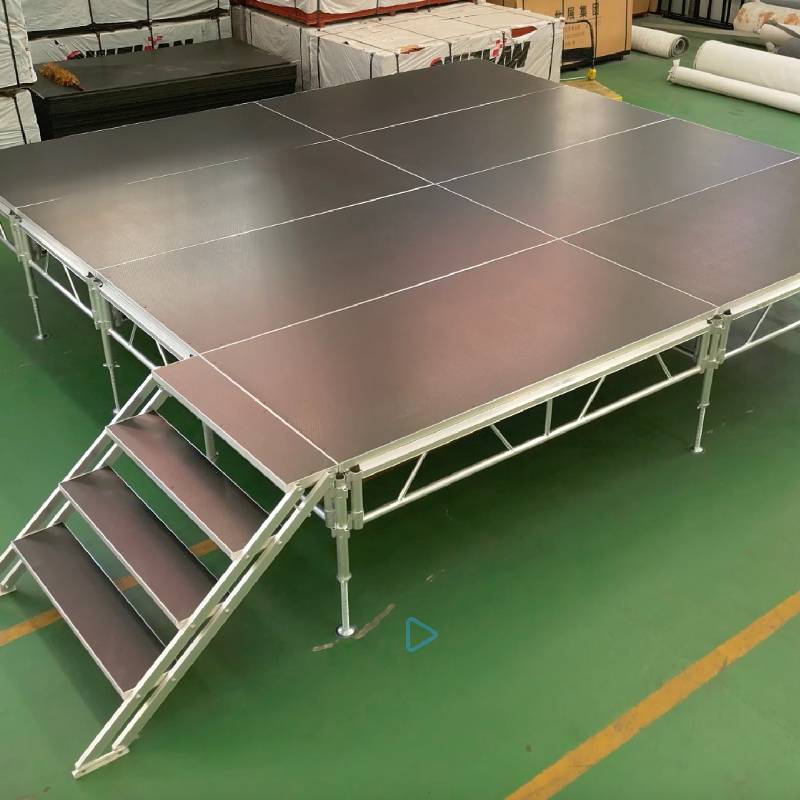

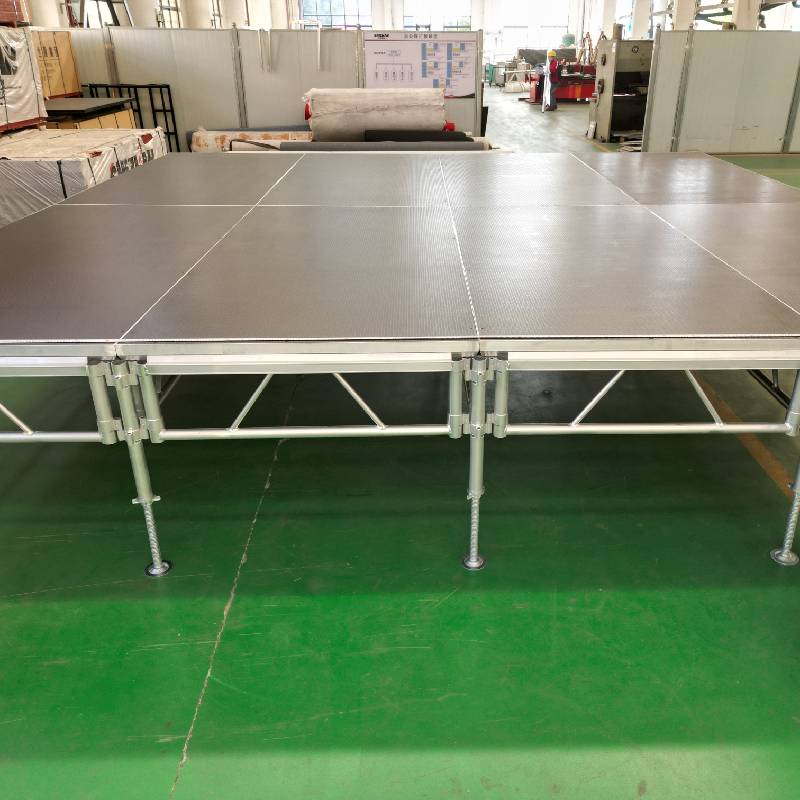

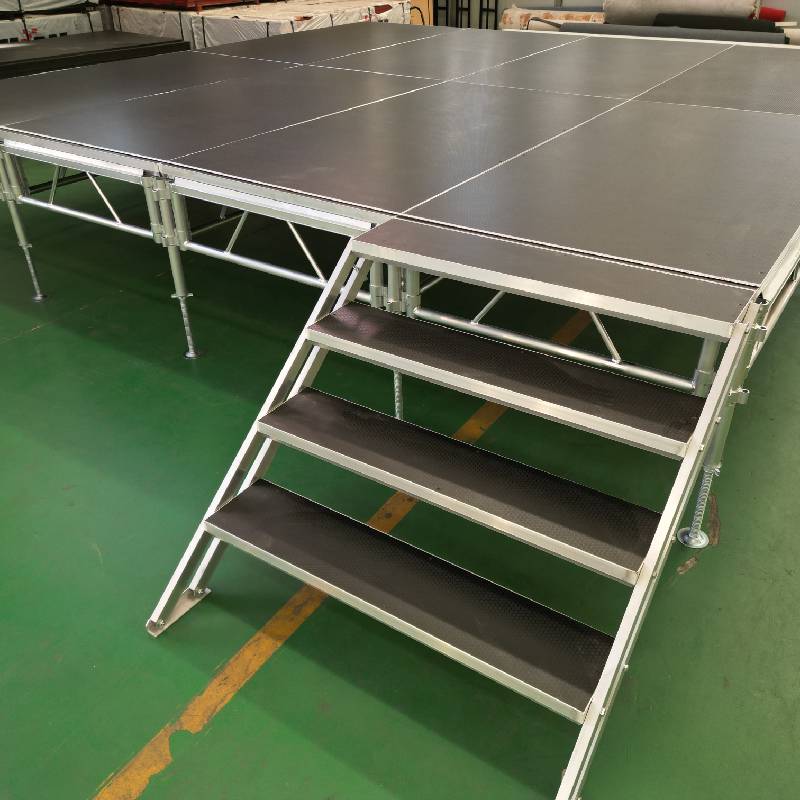

Standard Insert Stage SZAS Basic Model

SZAS004 (0.6–1.1m adjustable height)

SZAS005 (0.4–0.85m low height)

SZAS006 (widened heavy-duty load-bearing model)

Core Materials: 6061 aluminum frame, 18mm double-sided waterproof and non-slip plywood

Standard Single Piece Size:

1.22m × 1.22m (square);

1.22 × 2.44m rectangle Height Subdivisions:

· Low Height: 0.4m / 0.6–0.85m stepless screw adjustment

· Standard Height: 0.6–1.1m screw adjustment

Single Piece Load Capacity: 750kg/㎡ Minimum Order

Quantity: 4 pieces (1 set)

Standard Packaging: Tabletop pearl cotton, aluminum frame tray, screw rod

Key Selling Points:

1. Modular and freely combinable T 1. Stages (round, irregular shapes)

2. Waterproof and non-slip tabletop, suitable for indoor and outdoor use, 1-year structural warranty

3. Equipped with standardized 3/4/5-step stairs and guardrails

4. CE load-bearing certified, same supplier as the Tiananmen Square viewing platform. Optional accessories: stage carpet, casters, waterproof drape. Upgrade options: fully transparent tempered glass stage, black powder-coated aluminum frame. Not supported: single piece side length > 3m, unsupported suspended, height < 0.4m, fixed without adjustment.

Transparent Glass Stage SZ-GLASS Series

Models: SZGL-1212 (1.22×1.22), SZGL-1224 (1.22×2.44) Tabletop: 12mm double-layer tempered clear glass, bottom anti-slip and explosion-proof treatment; height adjustable from 0.6 to 1.1m. Suitable for: beach weddings, high-end banquets, fashion shows.

Layher Frame Heavy-Duty Stage SZ-LAY Series

Model: SZLAY-10/20 (1m/2m uprights)

Frame: Q345 hot-dip galvanized Layher frame base, 18mm thickened stage board

Height: 1–3m adjustable, load-bearing

capacity: 1300kg/㎡; Specially designed for main stages of large outdoor concerts
