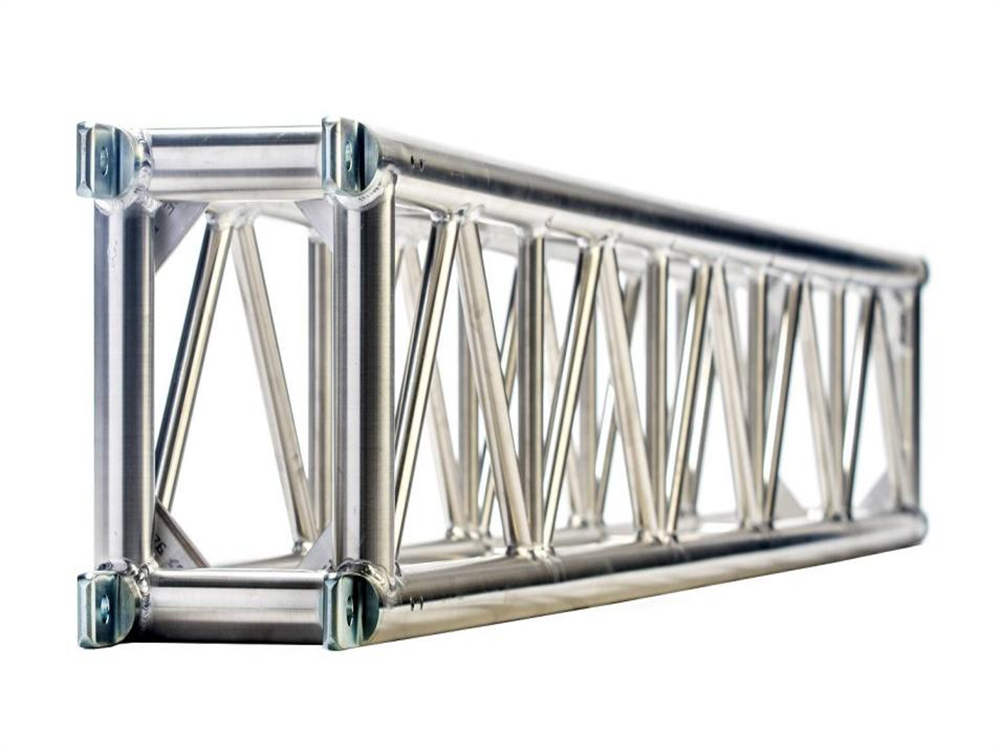

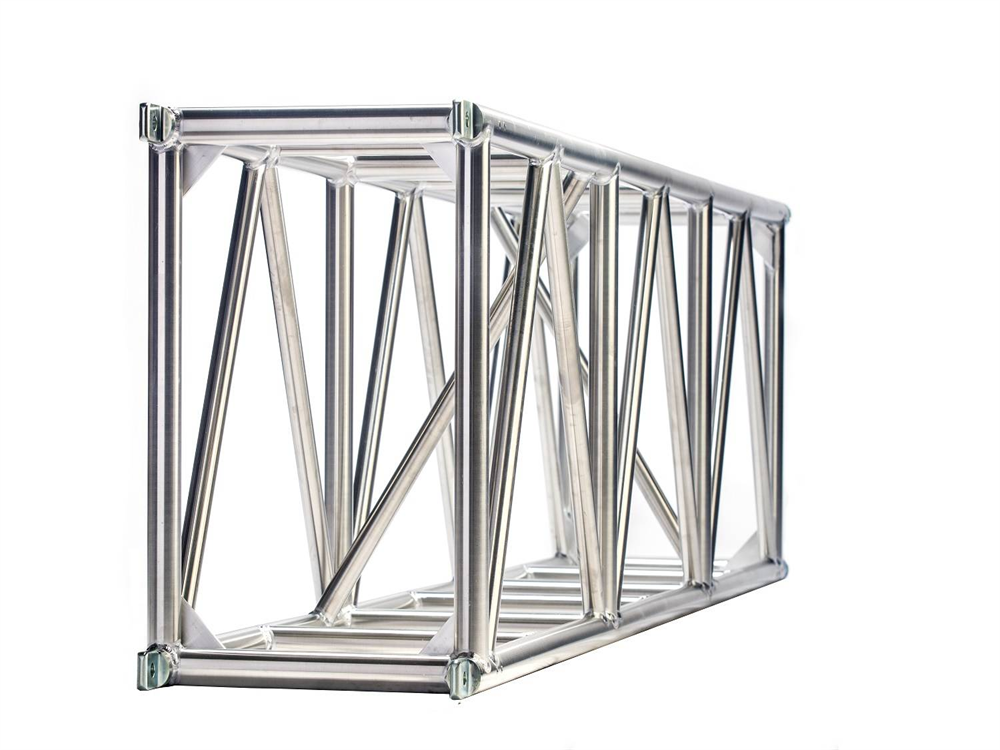

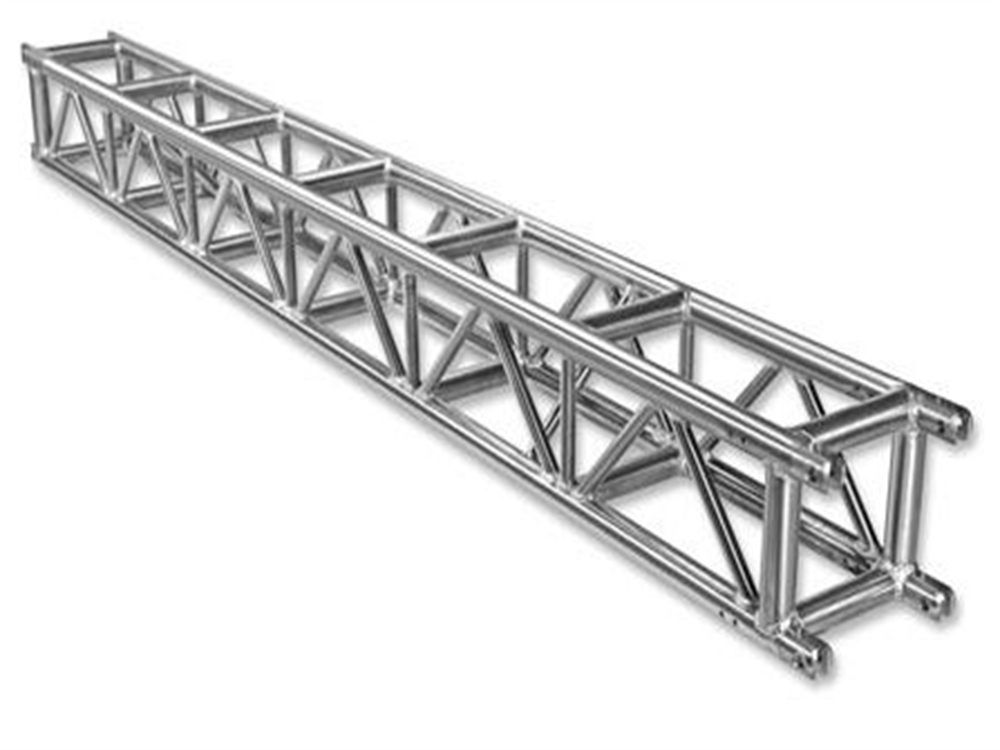

The Model of The Aluminum Lighting Truss

The steel truss can hang heavy concert equipment, has good load-bearing performance, and is strong and durable. It can be customized according to different span and load-bearing requirements. Specific dimensions: 5000*920*920mm (L*W*H)

Based on the span and load-bearing capacity, our trusses are classified into three categories:

1. Light-Duty Truss

Available sizes:

250×250mm / 290×290mm / 300×300mm / 400×400mm

Specifications (typical for light-duty models):

· Main tube: 50×3mm

· Vice tube: 25×2mm

· Brace tube: 20×2mm

Performance data:

· 300×300mm truss: Max span 14m, load capacity 500kg

· 300×400mm truss: Max span 15m, load capacity 600kg

· 400×400mm truss: Max span 16m, load capacity 700kg

· 450×450mm truss: Max span 16m, load capacity 800kg

2. Medium-Duty Truss

Available sizes:

400×500mm / 400×600mm / 500×600mm / 520×520mm

Performance:

· Max span 16m

· Load capacity up to 850kg

3. Heavy-Duty Truss

Available sizes:

520×760mm / 600×760mm / 800×1500mm

Performance:

· Max span 30m

· Load capacity up to 1500kg

These truss systems are widely applicable for various types of events, including exhibitions, concerts, staging, and large-scale structures.

For more information or custom requirements, please feel free to contact Shizhan Group — your reliable partner in professional staging and truss solutions.
