Square Bolt Truss with Plate

Technical Parameters

Truss Material:  Aluminum Alloy 6061-T6/6082-T6

Light duty truss:  200mm; 250mm

Medium duty truss:  290mm; 300mm; 350mm; 300mm ;400mm; 450mm

Heavy duty truss:  520mm ; 600mm; 760mm

Main tube thickness:  30*2mm; 50*3mm; 50*4mm; 50*5mm

Vice tube thickness:  18*2mm; 20*2.5mm; 25*2.5mm

Brace tube thickness:  20*2mm; 25*2mm; 30*2mm

Length:  0.5m/1m/1.5m or custom size

Truss type:  Bolt

Usage:  Concert, new product release, fashion show, booth stand construction

Delivery Time:  15 working days

Certificate:  CE, SGS, TUV

Product Details

Use of Square Bolt Truss with Plate

Square bolt truss with plate is mainly used in regular concerts or performance activities. Its bearing capacity is higher than that of ordinary trusses, and some heavy lighting and audio equipment can be hung. The span that can be built is also longer than the general truss.

Advantage of Square Bolt Truss with Plate

1. High bearing capacity of square bolt truss with plate and simple installation, beautiful and compact appearance

2. The connection mode is the same as that of ordinary truss, which is convenient and easy to remove .

3. We use professional engineers to design such square bolt truss with plate, which can cost less. Complex product process and professional production technology can improve product quality

Technical index of Square Bolt Truss with Plate

1. Quality of Square Bolt Truss with Plate

We have introduced equipment, trained high-quality welding technicians, and selected high-quality raw materials. We will provide consumers with high-quality and safe products.

2. Price of of Square Bolt Truss with Plate

In the context of high quality and reasonable profit, we provide our consumers with the most competitive prices.

3. Service:

Treat our consumers sincerely! Do our best to provide you with convenient and efficient communication channels and establish a good reputation. We will keep our promise and take action effectively! Don't hesitate to contact us immediately!

Square Truss Supplier and Manufacturer – SHIZHAN Group

Jiangsu SHIZHAN Group Co.,Ltd. was found in 2004 which is specialized in R&D, production and sale of all kinds of square truss, Stage, Barrier, Scaffolding. As a Group company, SHIZHAN covers a factory area of 35,000m², headquarters located in Wuxi, China.

We as a square truss supplier and Ladder truss manufacturer have the complete production line from tube and accessories production, to finished product, a strong R&D team of 20 engineers, a professional QC team of 10 engineers, many welders with more than 10 years experience and CNC finishing center. With the 6S management, strict online production and inspection, final product erection test for each order, we guarantee the product precision and quality, make sure to deliver the perfect product to customer.

As a leader company, SHIZHAN Group was awarded the honor of Wuxi Technology Center by government, and passed the certificate of CE, SGS, TUV, BV, ISO9001. Our product export to more than 150 country. SHIZHAN focus on to be your reliable partner, let’s cooperate together to show the beauty of the world, make safer performance.

Related Product of Square Truss

Aluminum Plate Truss

12 inch aluminum square box truss

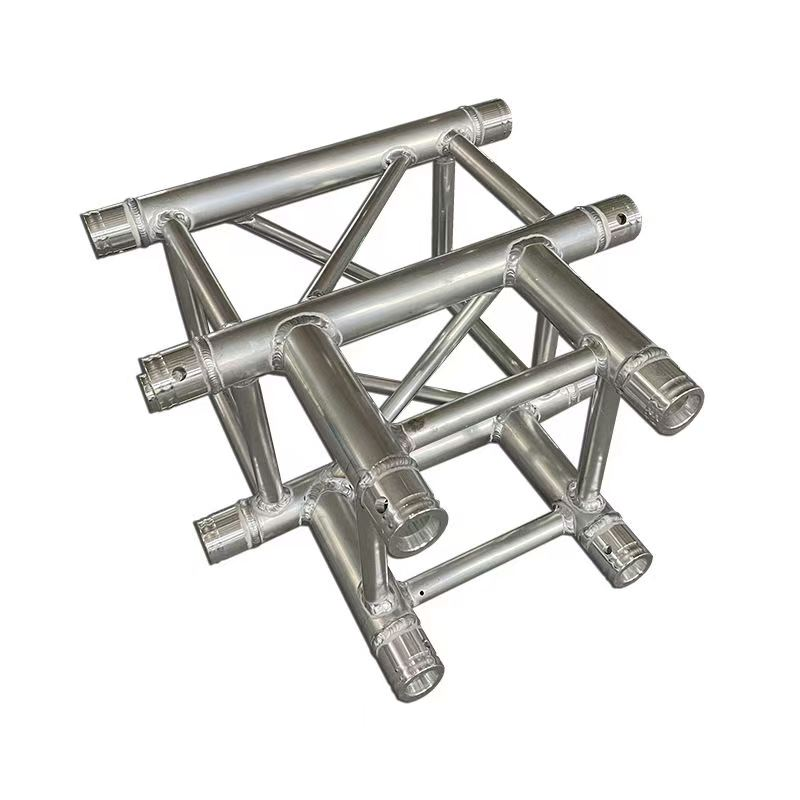

Spigot Truss

Square Bolt Truss with Plate for Heavy-Duty Event Structures

The Square Bolt Truss with Plate is designed for event and exhibition structures that require a combination of high load capacity, structural stability, and flexible installation. Manufactured from aluminum alloy 6061-T6 or 6082-T6, this square truss provides a strong yet relatively lightweight structural solution for supporting lighting, audio equipment, banners, displays, and other event-related equipment.

Compared with standard lightweight truss systems, the square bolt truss with plate is available in multiple structural sizes for different load and span requirements. Light-duty options are available in 200 mm and 250 mm sizes, while medium- and heavy-duty configurations range from 290 mm to 760 mm. This allows event contractors, rental companies, and system integrators to select a suitable truss configuration according to the required span, equipment load, and overall structure.

The bolt connection system provides a practical solution for projects where the truss needs to be assembled, dismantled, transported, and reused regularly. Individual sections can be connected to create longer spans or larger structures, while different section lengths make it easier to adapt the truss system to specific venue dimensions. Standard lengths include 0.5 m, 1 m, and 1.5 m, with custom lengths available for projects requiring special configurations.

The plate connection design also makes the truss suitable for applications where additional structural components or supporting systems need to be integrated into the overall installation. Depending on the project design, square bolt truss can be used for concert lighting rigs, stage structures, product launches, fashion shows, exhibition booths, trade show displays, and temporary event installations.

For professional event equipment suppliers and rental companies, the modular construction makes the system practical for repeated deployment across different venues. The aluminum structure offers a useful balance between strength, portability, and handling efficiency, while the range of available dimensions provides flexibility for both smaller installations and larger event structures.

SHIZHAN can also provide customized truss dimensions, section lengths, tube specifications, connection configurations, and other structural requirements according to project needs. With professional engineering, production, welding, quality inspection, and erection testing, the Square Bolt Truss with Plate can be supplied as part of a complete structural solution for demanding event and exhibition projects.
