Spigot Truss (Light/Medium/Heavy/Irregular Shapes)

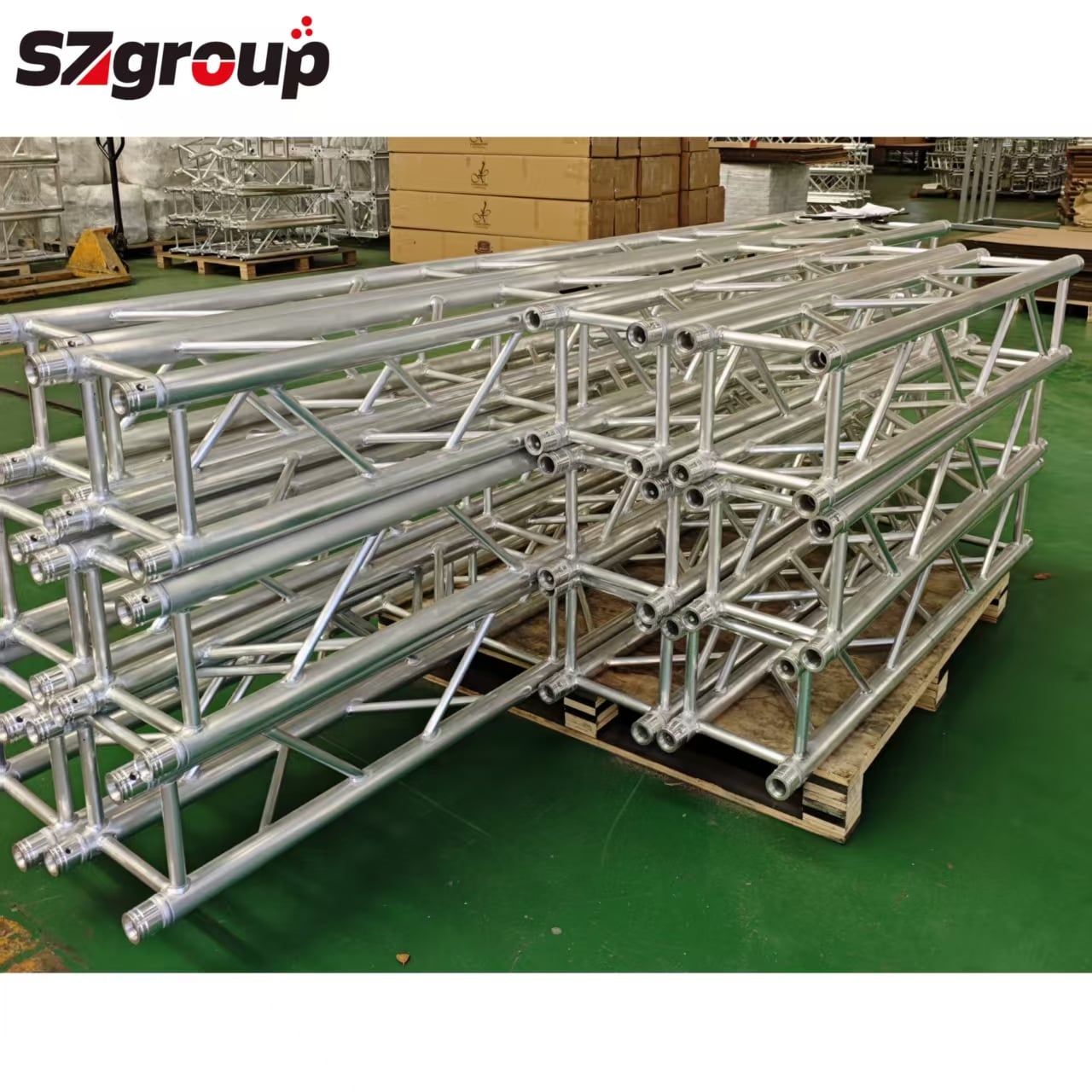

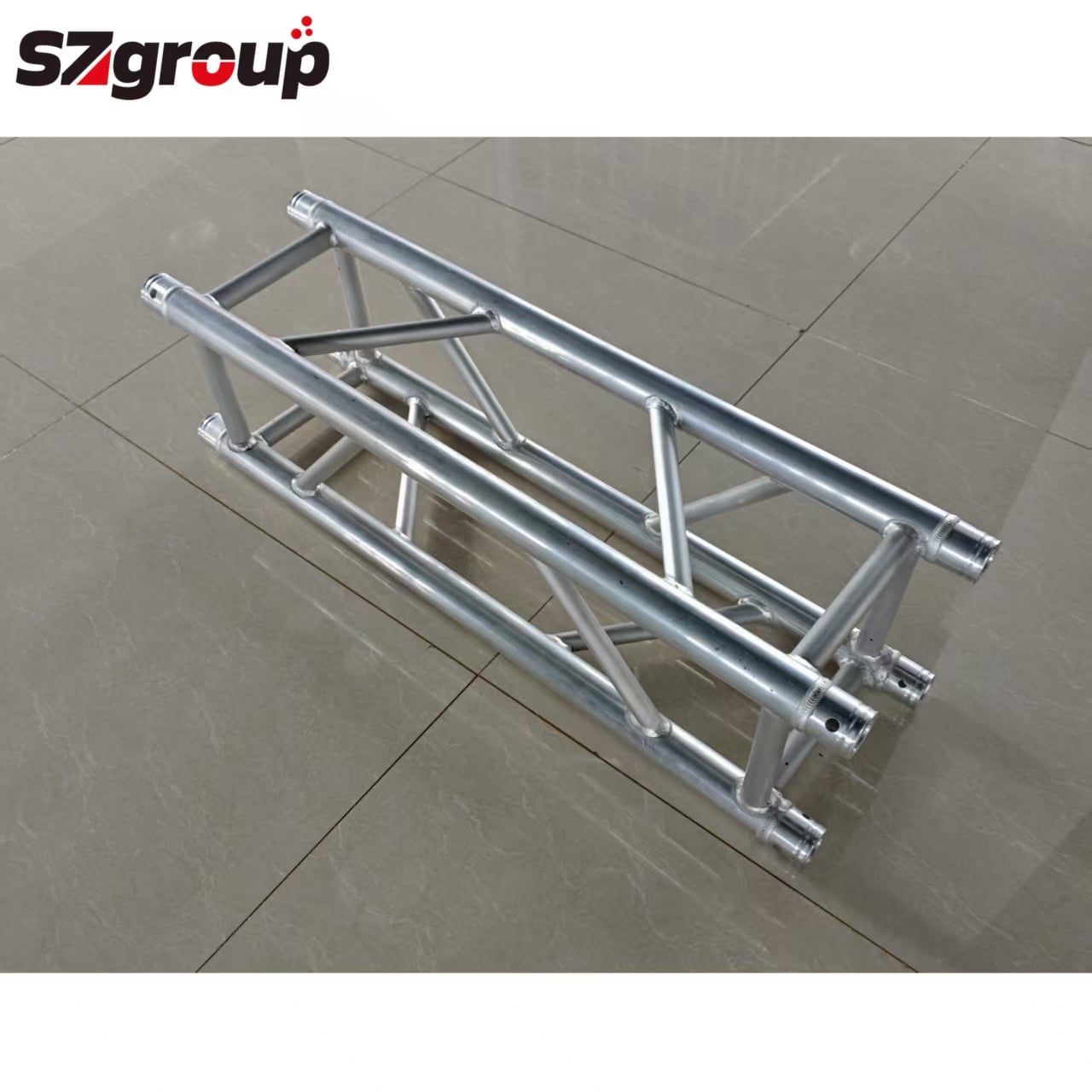

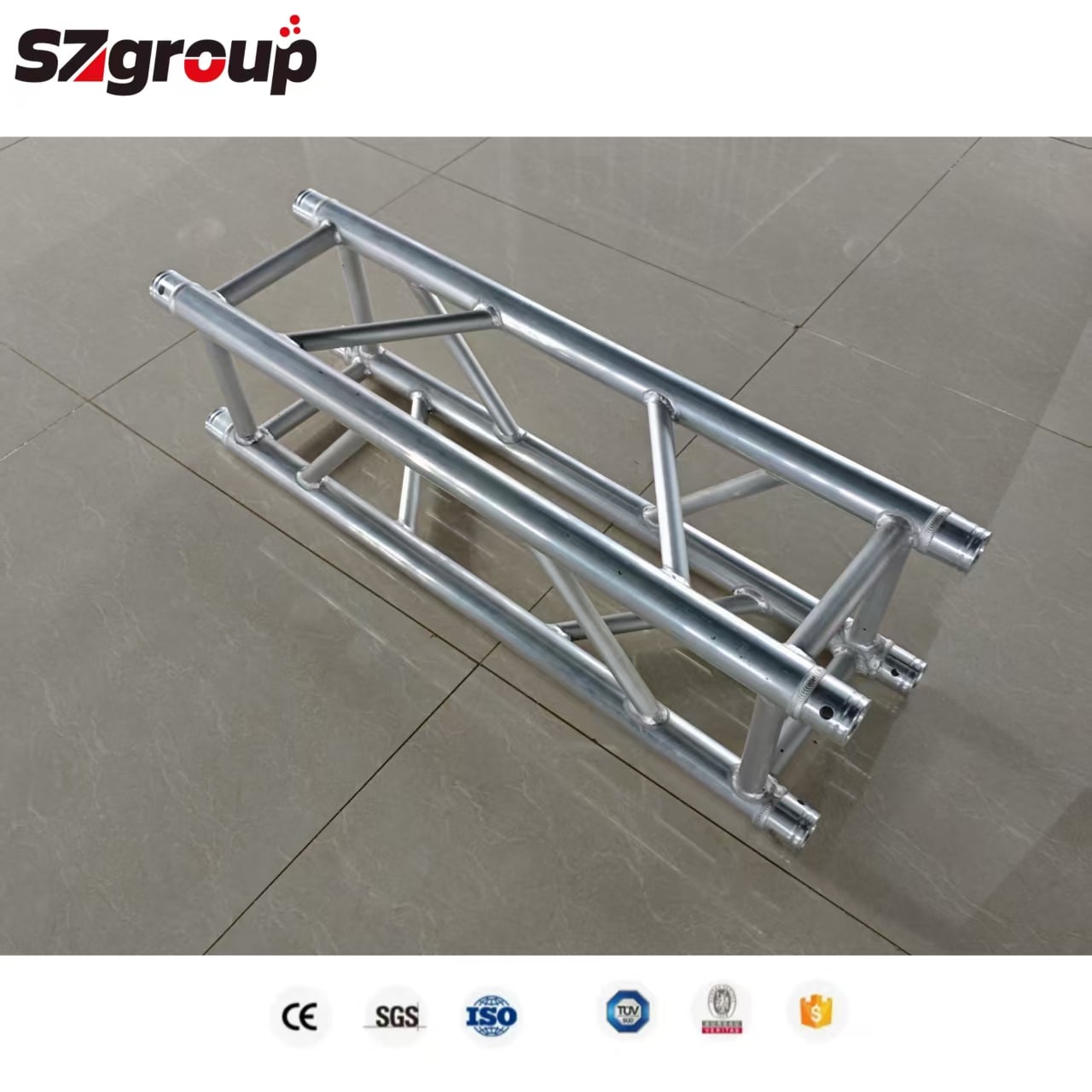

Light-Duty Spigot Square Truss SZSST Series (290×290mm)

Product Models: SZSST-05 (0.5m), SZSST-10 (1m), SZSST-20 (2m), SZSST-30 (3m), SZSST-40 (4m), SZSST-60 (6m)

Core Material: 6061-T6 Aluminum, Main Tube φ50×3.0mm, Sub-tube φ25×2.0mm, Diagonal Tube φ20×2.0mm

Standard Specifications: Section 290mm×290mm; Single Section Fixed Length 0.5/1/2/3/4/6m; Maximum Recommended Span 12m

Load Parameters: Uniformly Distributed Load per 6m Span 186kg/m, single-point load capacity 130kg. Minimum order quantity

(MOQ): 10 meters.

Standard packaging: Pearl cotton wrapping + solid wood pallet with steel straps for securing; accessories in separate cartons.

Key selling points:

1. TUV load certification, CE/ISO full certification, the first choice for lightweight booth construction for exhibitions and weddings.

2. Tool-free assembly with pins, quick assembly by one person, lightweight and low transportation costs.

3. Anodized original color / black powder coating dual process, long-term oxidation resistance indoors.

4. Full-size stock, 7-day delivery, matching standard curved/corner accessories.

5. Free 3D design plan for small exhibition booths/wedding backdrops provided by engineers. Optional accessories: 290 curved truss, universal corner brackets, pins, square sleeves, light hooks, ground support base. Customization supported.

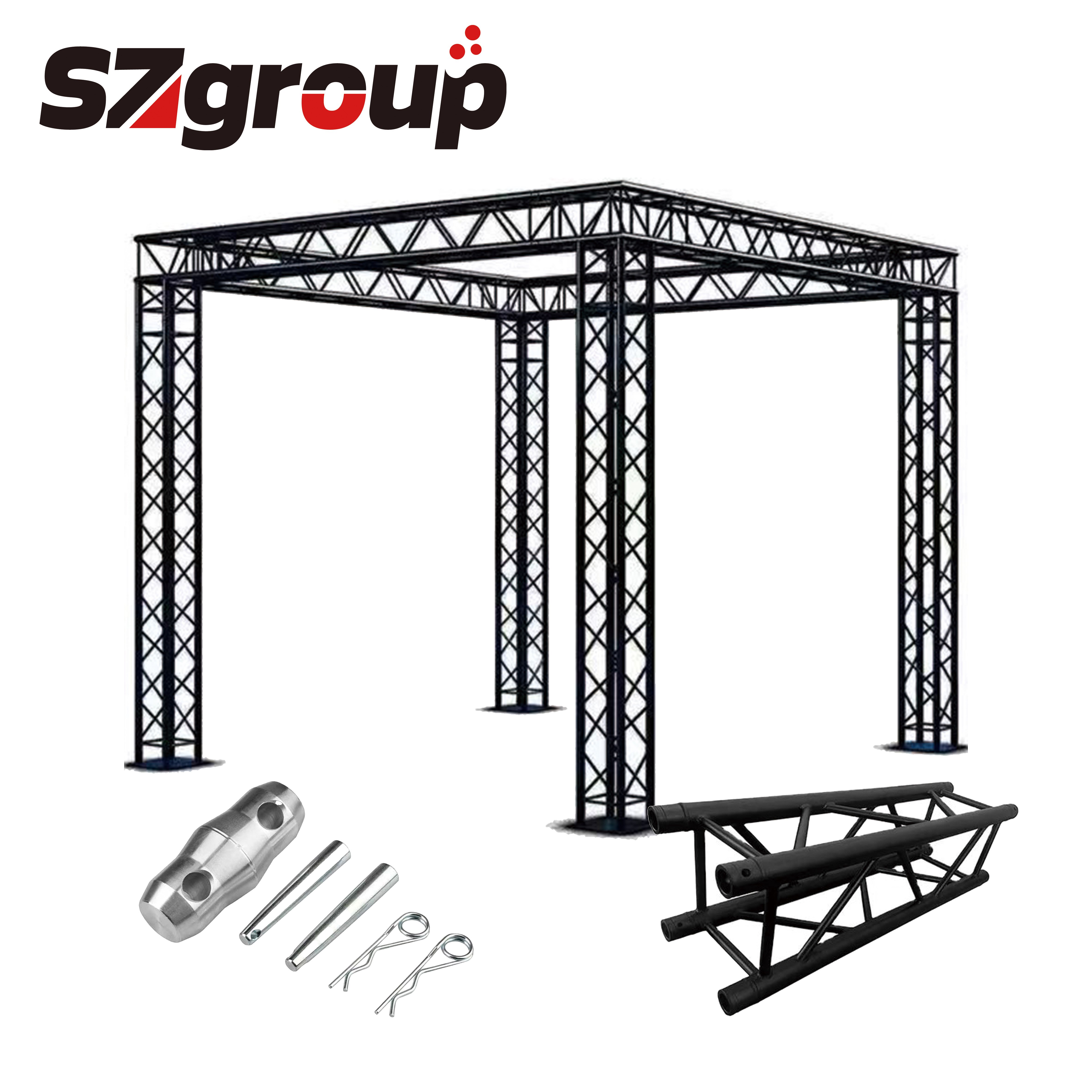

Lightweight Pin Triangular Truss SZTT Series (290 Triangle)

Product Model: SZTT-05 (0.5m), SZTT-10 (1m), SZTT-20 (2m), SZTT-30 (3m), SZTT-60 (6m)

Core material: 6061-T6, main pipe φ50×3.0mm, inclined pipe φ20×2.0mm

Standard specifications: triangular section 290×290mm; single section 0.5/1/2/3/6m; recommended span 10m Minimum order

quantity: 10 meters

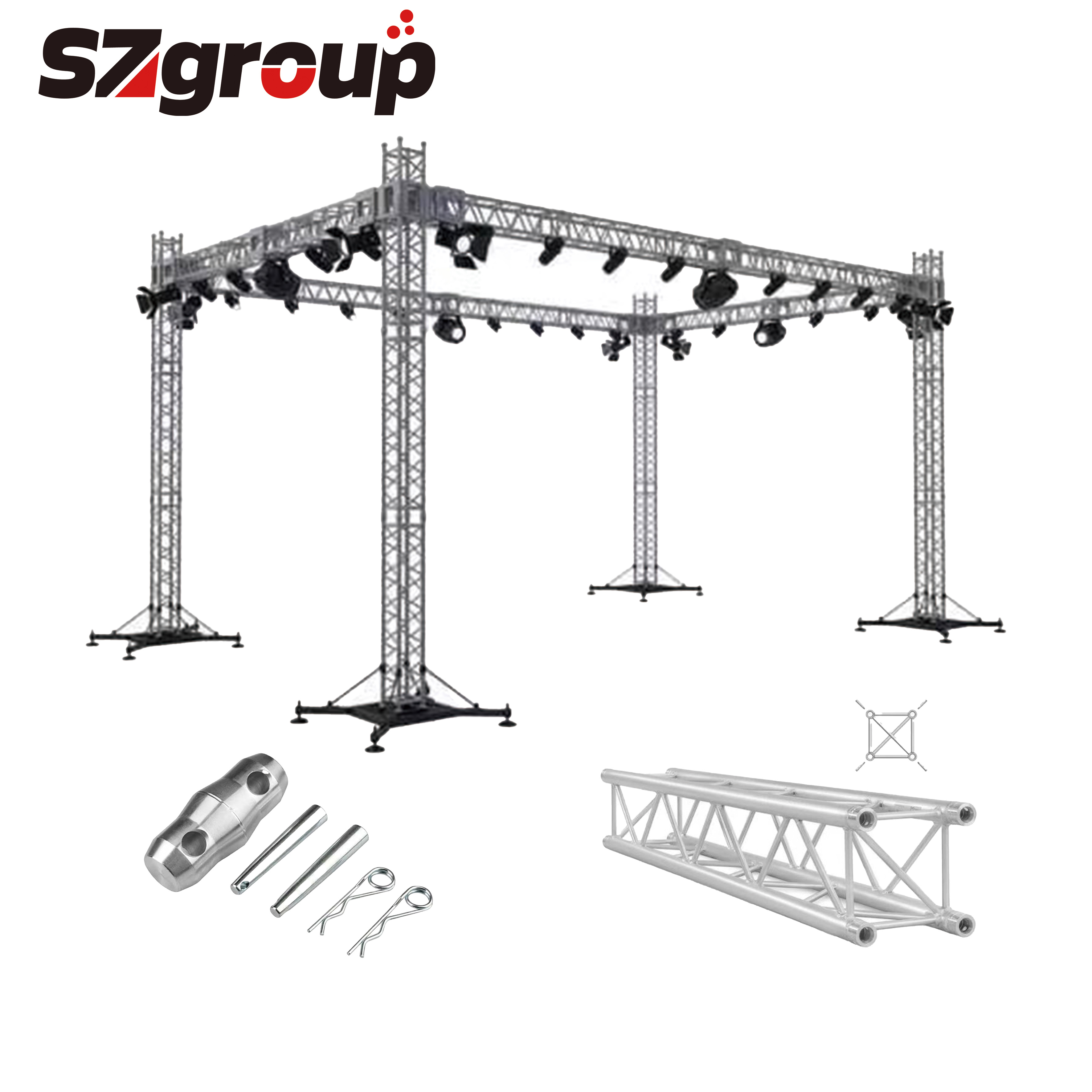

Medium-sized pin-type square truss SZF4 series (400×400mm)

Product model: SZF44-05 (0.5m), SZF44-10 (1m), SZF44-20 (2m), SZF44-30 (3m), SZF44-60 (6m), SZF44-120 (12m)

Core material: 6082 high-strength aluminum, main pipe φ50×4.0mm, secondary tube φ50×3.0mm, oblique tube φ25×2.0mm

Standard size: 400×400mm cross-section; single section 0.5–12m; maximum recommended span 16m

Load: 12m span uniformly distributed load 60.9kg/m, single point load 200kg Minimum order: 15 meters

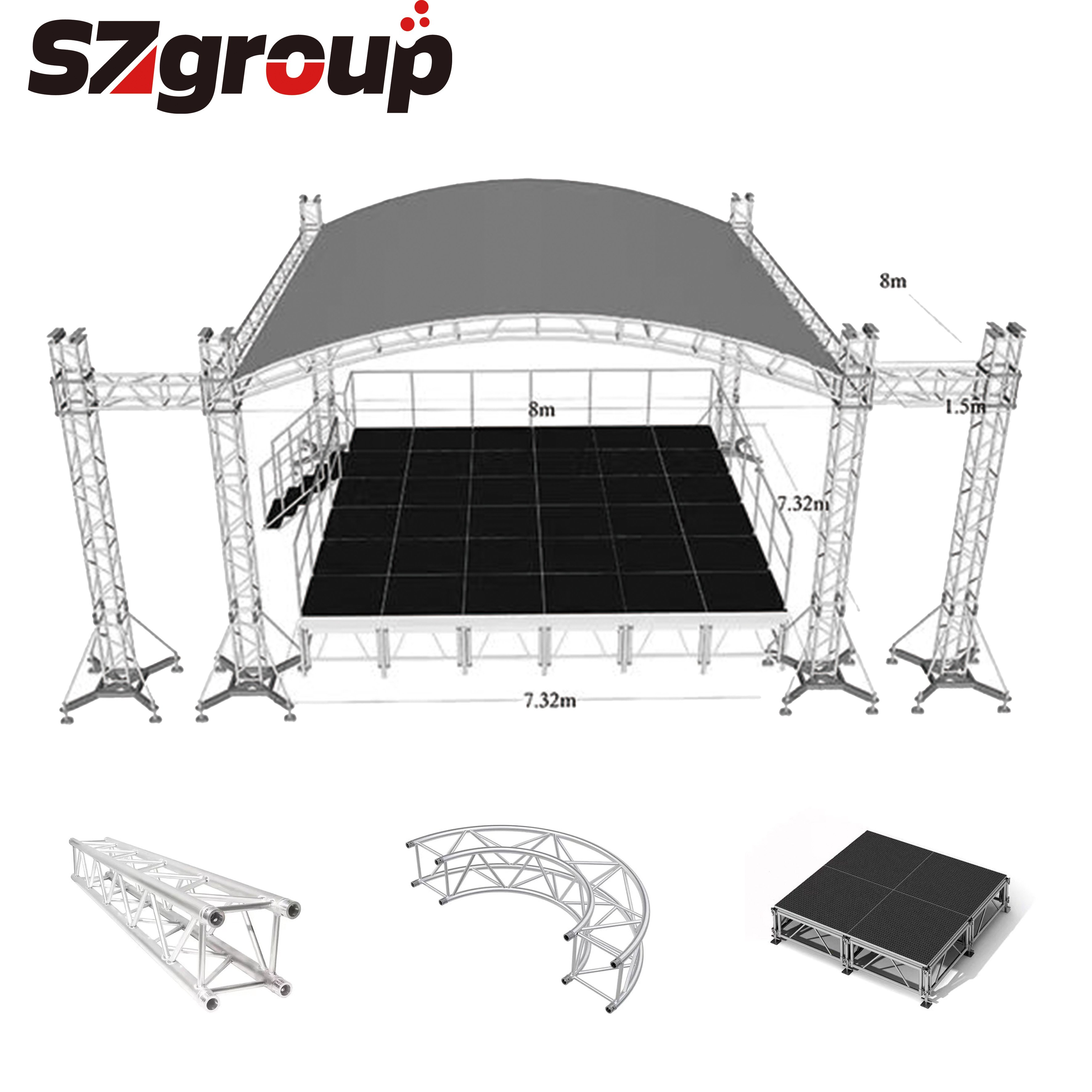

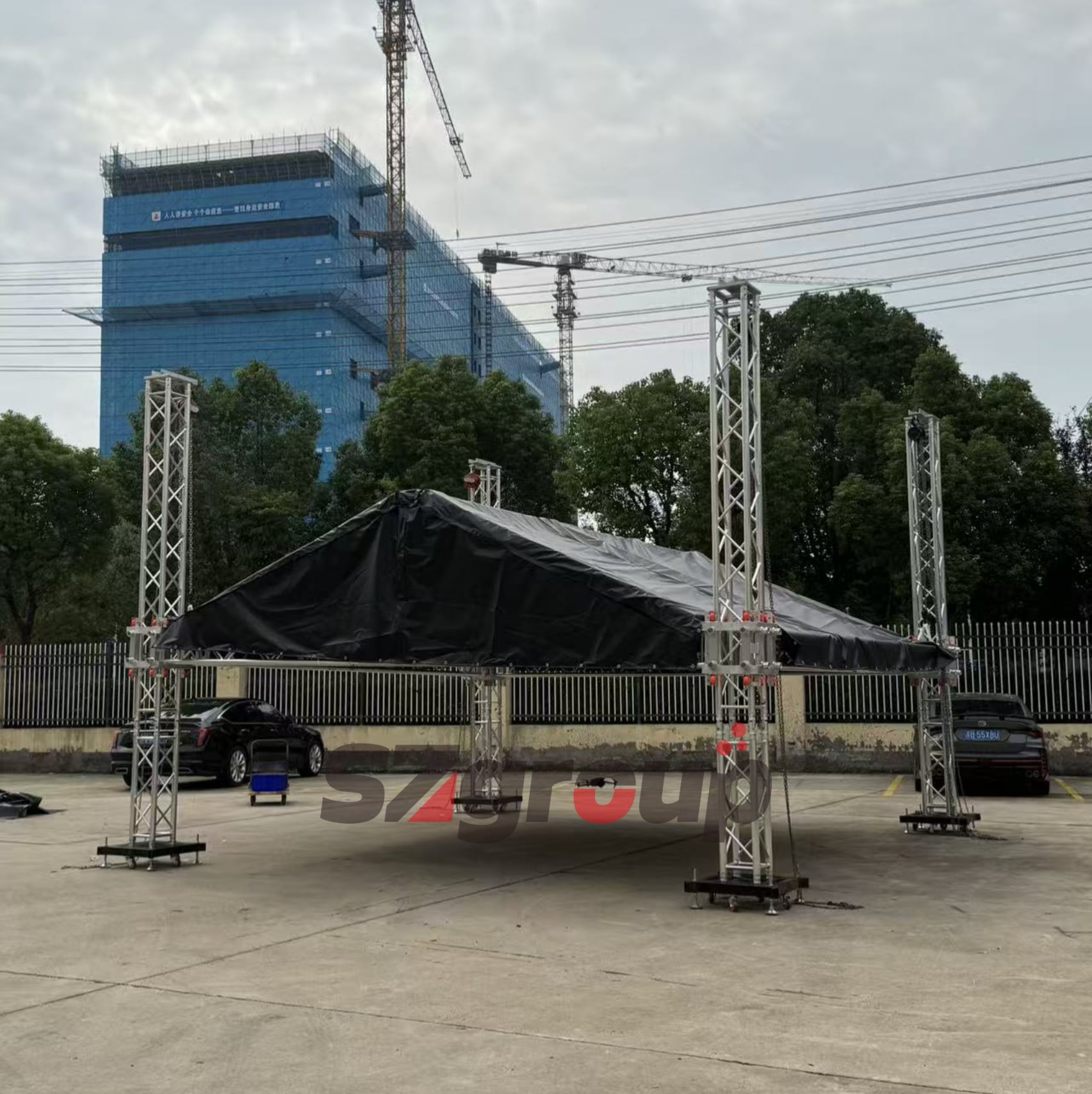

Application: Small and medium-sized concerts, outdoor music festival roof gantry

Heavy-duty bolted truss SZPT series (400×600 / 520×760)

① SZPT-4060 (400×600 rectangular bolted truss)

Model: SZPT-10 (1m), SZPT-20 (2m), SZPT-30 (3m), SZPT-40 (4m)

Material: 6082, main tube φ50×4.0mm, secondary tube φ50×3.0, inclined tube φ32×2.0, maximum span 18m, 12m span uniformly distributed load 189kg/m

② SZPT-5276 (520×760 heavy plate truss)

Model: SZPT-10/20/30/40 (1/2/3/4m)

Material: thickened main tube φ50×4.0, inclined tube φ30×2.0; maximum span 30m.

Application: stadium large-scale touring performances, super large tent main load-bearing roof.

Minimum order: 30 meters

Super large span heavy truss 800×1500

Model: SZ8015-20/30/40 (2/3/4m)

Material: 6082-T6 thickened tube; maximum recommended span 60m; used for stadium main stage roof 1.6 Irregular curved / Creative Trusses (Included Components) Circular ring trusses, heart-shaped trusses, five-pointed star trusses, bow trusses, arch trusses; molds of any diameter are supported.

MOQ: Minimum order 30 meters per set for irregular shapes.
